Find Your Part (w/ Details)

Part Number Height Width Depth Filler Neck Product Inlet Outlet Oil Cooler

www.activeradiator.com

Call today to Order

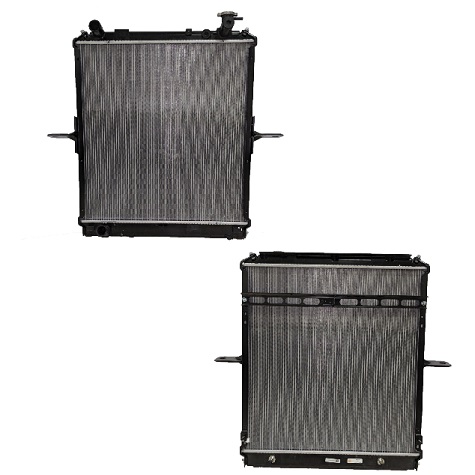

580044 - Isuzu NPR 2008-2010

Share Via E-Mail Call For Availability

580044 - Isuzu NPR 2008-2010 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

580044PT
Call for price
5800-44ST
Call for price

Core Dimensions

Height:
24.375"
Width:
23.5"
Depth:
1.4375"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
Right
Inlet:
1.5" (Left)
Outlet:
1.5" (Right)
Oil Cooler:
Bottom / Front

OE Numbers

580044
580044ST
8980113402
98011340
238868

www.activeradiator.com

Call today to Order

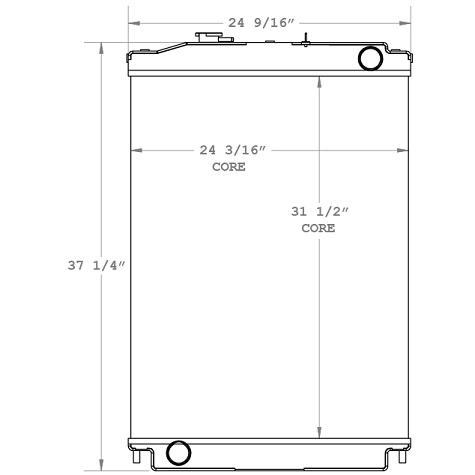

580045 - Chevrolet FVR Mexico

Share Via E-Mail Call For Availability

580045 - Chevrolet FVR Mexico Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
31.625"
Width:
24.1875"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
Top Left
Inlet:
2" (Top Right)
Outlet:
2" (Bottom Left)
Oil Cooler:
None

OE Numbers

580045
580045ST
1214024890

www.activeradiator.com

Call today to Order

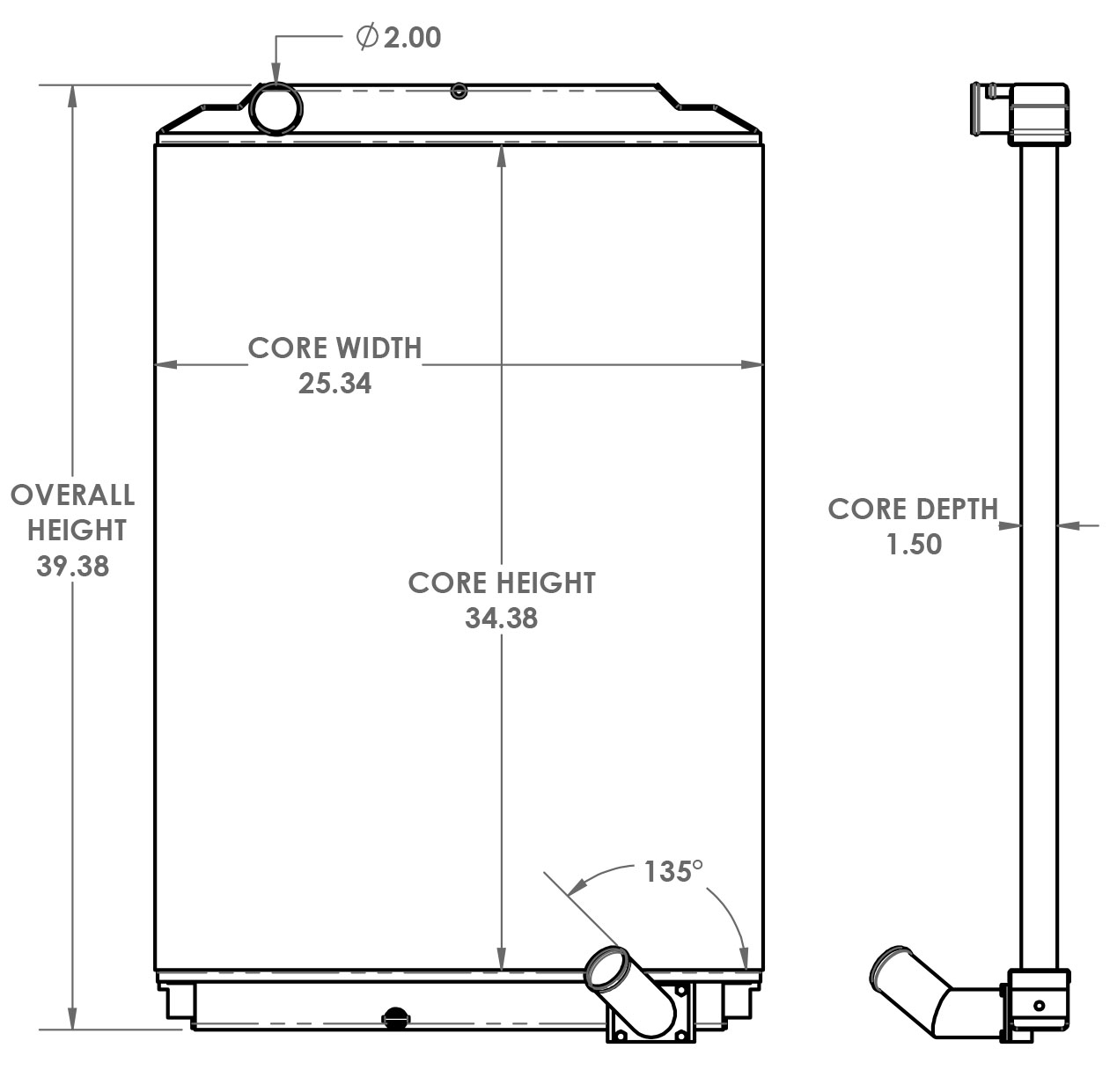

580046 - GMC / Isuzu T & F series Cab over Radiator 2003-2006

Share Via E-Mail Call For Availability

580046 - GMC / Isuzu T & F series Cab over Radiator 2003-2006 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

580046AT
Call for price

Core Dimensions

Height:
34.375"
Width:
25.375"
Depth:
1.5"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2" (Top Left)
Outlet:
2" (Bottom Right Curved)
Oil Cooler:
None

OE Numbers

580046
580046AP
580046AT
580046PT
605RA046WF
605RA046
239145
SC239145
SCSI239145
TR9145
LT9307
HDC010927PA
HDC010927
AA4221332190
4221332190
AA4220004350
4220004350
15206692
AA4220004370
4220004370
21570
21571
21572
89023363
89023385
89023381
437461P

www.activeradiator.com

Call today to Order

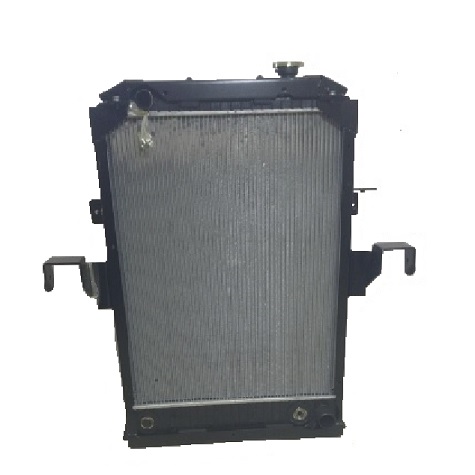

580047 - GMC T series / Isuzu F Series 1999-2002

Share Via E-Mail Call For Availability

580047 - GMC T series / Isuzu F Series 1999-2002 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

580047AT
Call for price
580047PT
Call for price
5800-47ST
Call for price

Core Dimensions

Height:
30.375"
Width:
24.5"
Depth:
1.4375"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
1.5" (Left)
Outlet:
2" (Right)
Oil Cooler:
Bottom

OE Numbers

580047
580047ST
SCSI232107
TR2107
232107
GMC2107OC
RA1098
206002
52470226
8524702260
52470229
8524702290
437463P

www.activeradiator.com

Call today to Order

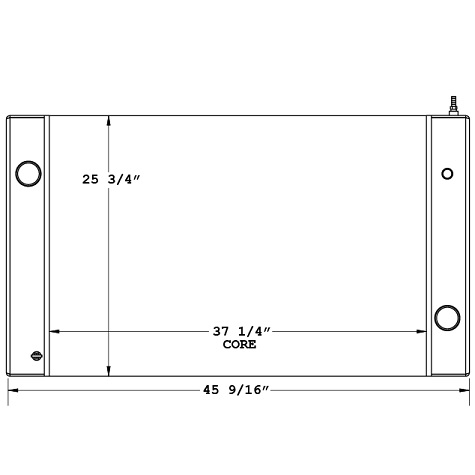

580049 - GMC Diesel Truck Diesel

Share Via E-Mail Call For Availability

580049 - GMC Diesel Truck Diesel Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
37.25"
Width:
25.75"
Depth:
2.75"
Overall Height:
45.5625"

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.375" (Left Top)
Outlet:
2.375" (Right Bottom)
Oil Cooler:
None

OE Numbers

580049
580049AT

www.activeradiator.com

Call today to Order

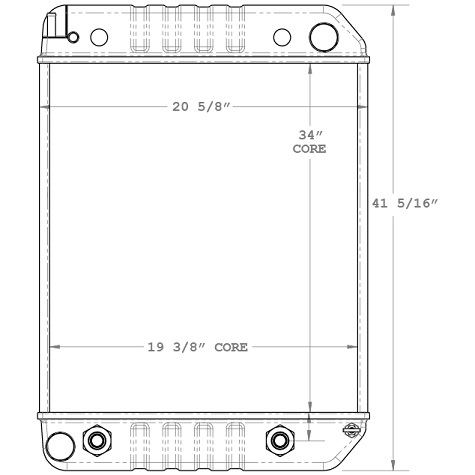

580050 - WORKHORSE RADIATOR

Share Via E-Mail Call For Availability

580050 - WORKHORSE RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

OE Numbers

580050

www.activeradiator.com

Call today to Order

580051 - NOT USED

Share Via E-Mail Call For Availability

580051 - NOT USED Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

www.activeradiator.com

Call today to Order

580052 - WORKHORSE RADIATOR

Share Via E-Mail Call For Availability

580052 - WORKHORSE RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

www.activeradiator.com

Call today to Order

580053 - WORKHORSE RADIATOR

Share Via E-Mail Call For Availability

580053 - WORKHORSE RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

www.activeradiator.com

Call today to Order

580054 - WORKHORSE USE 800027 PTWF

Share Via E-Mail Call For Availability

580054 - WORKHORSE USE 800027 PTWF Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

www.activeradiator.com

Call today to Order

580055 - WORKHORSE RADIATOR

Share Via E-Mail Call For Availability

580055 - WORKHORSE RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
-
Width:
-
Depth:
-
Overall Height:
-

Description

Product Type:
Radiator

www.activeradiator.com

Call today to Order

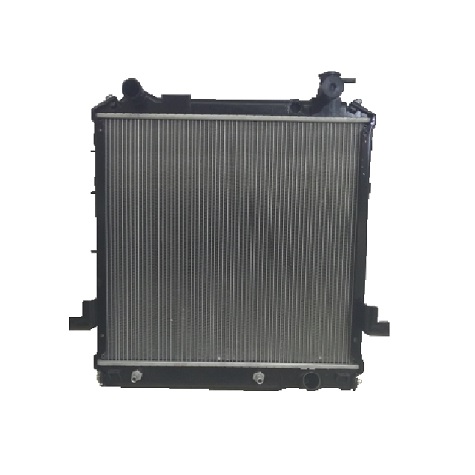

580056 - ISUZU RADIATOR

Share Via E-Mail Call For Availability

580056 - ISUZU RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

5800-56PT
Call for price

Core Dimensions

Height:
20.0625"
Width:
21.375"
Depth:
1.25"
Overall Height:
-

Description

Product Type:
Radiator
Filler Neck:
Right
Inlet:
1.5" (Left)
Outlet:
1.5" (Right)
Oil Cooler:
Bottom

OE Numbers

580056
8067210
8981129863

www.activeradiator.com

Call today to Order

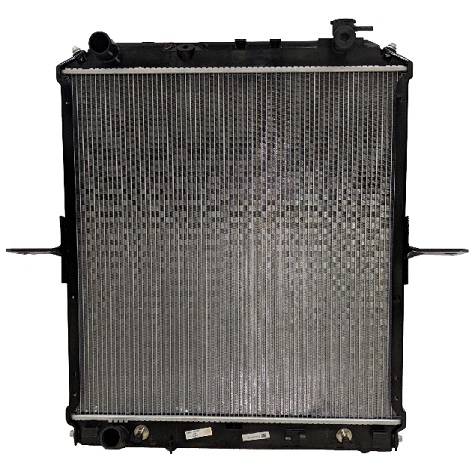

580057 - ISUZU NPR DIESEL RADIATOR 2011-2013

Share Via E-Mail Call For Availability

580057 - ISUZU NPR DIESEL RADIATOR 2011-2013 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

580057PT
Call for price

Core Dimensions

Height:
24.375"
Width:
23"
Depth:
1.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
Right Front
Inlet:
1.5" (Left)
Outlet:
1.5" (Left)
Oil Cooler:
Bottom

OE Numbers

580057
580057PT
8067211
238833
SCSI238833
SC238833
8981368893
8982105373
8981368894
98210537

www.activeradiator.com

Call today to Order

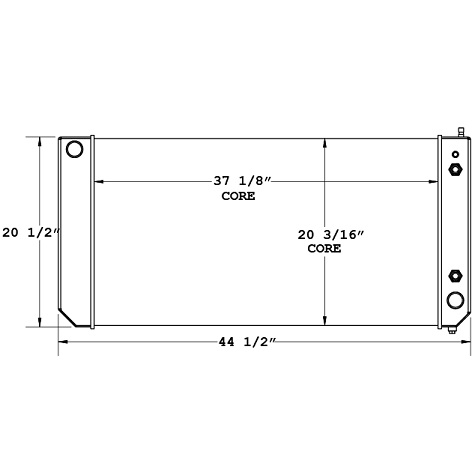

580058 - 2008-2009 GMC C4500 RADIATOR

Share Via E-Mail Call For Availability

580058 - 2008-2009 GMC C4500 RADIATOR Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
37.125"
Width:
20.1875"
Depth:
2.25"
Overall Height:
44.5"

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
1.75" (TOP LEFT)
Outlet:
1.75" (BOTTOM RIGHT )
Oil Cooler:
RIGHT

OE Numbers

580058
580058AT
1003650
1003650A

www.activeradiator.com

Call today to Order

590001 - Mitsubishi FE Series 1996-2004

Share Via E-Mail Call For Availability

590001 - Mitsubishi FE Series 1996-2004 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

590001PT
Call for price
5900-01ST
Call for price

Core Dimensions

Height:
21.25"
Width:
21.5625"
Depth:
1.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
1.875" (Left)
Outlet:
1.875" (Left)
Oil Cooler:
None

OE Numbers

590001
590001ST
590001PT
590001AP
MIT01
MIT01F
627RA001WF
627RA001
LT9131
437407
437407P
239122
TR9122
SC239122
SCSI2329122
HDC010270PAF
HDC010270PA
HDC010270
LC127002
OACB2453
MC127002
ME292313
437407P
437407PF

www.activeradiator.com

Call today to Order

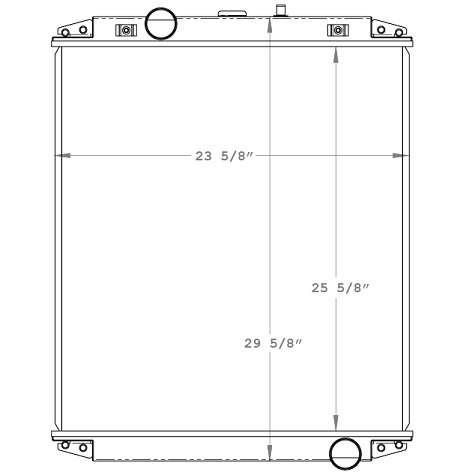

590002 - Bering Truck

Share Via E-Mail Call For Availability

590002 - Bering Truck Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

5900-02ST
Call for price

Core Dimensions

Height:
25.625"
Width:
23.6875"
Depth:
2"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
NA
Inlet:
2" (LEFT)
Outlet:
2" (Right)
Oil Cooler:
None

OE Numbers

590002
590002ST
437408S

www.activeradiator.com

Call today to Order

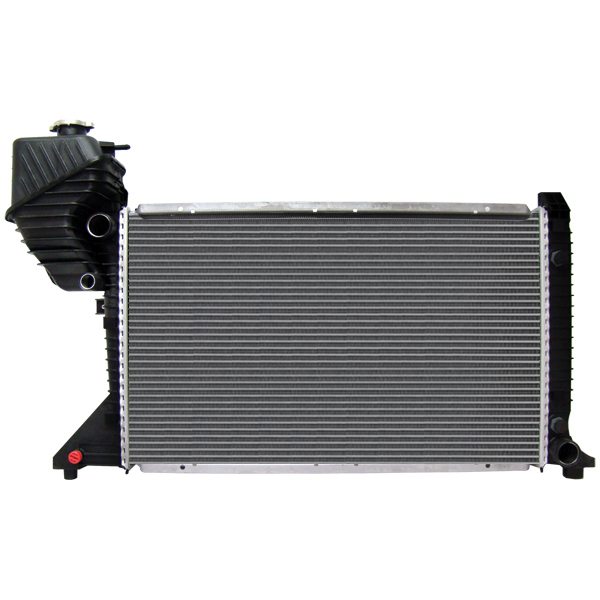

590003 - Mercedes / Freightliner / Dodge Sprinter

Share Via E-Mail Call For Availability

590003 - Mercedes / Freightliner / Dodge Sprinter Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
26.75"
Width:
15.9375"
Depth:
1.4375"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
Inlet:
1.75" (LEFT)
Outlet:
1.75" (Right)
Oil Cooler:
Right

OE Numbers

590003
590003PT
5903
S5903
X5903
232796
TR2796
SCSI232796
412796A
CU2796
DO2796
DO2796PA
2796
434002
RC2401AP
376722001
9110
FLX000225
SRM208426
55208426
5104117AA
9015003800
A9015003800

www.activeradiator.com

Call today to Order

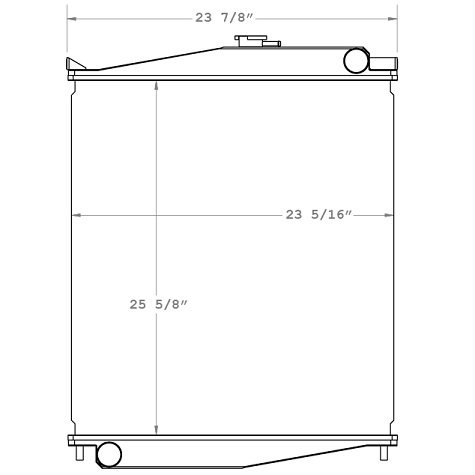

590004 - Nissan / UD 1800-3300 Radiator 1995-2004

Share Via E-Mail Call For Availability

590004 - Nissan / UD 1800-3300 Radiator 1995-2004 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

590004PT
Call for price
590004PTWF
Call for price
5900-04ST
Call for price

Core Dimensions

Height:
25.625"
Width:
23.5625"
Depth:
1.5"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
Top
Inlet:
1.75" (Right)
Outlet:
1.75" (Left)
Oil Cooler:
None

OE Numbers

590004
590004ST
590004PT
629RA004
239174
SC239174
SCSI239174
TR9174
559174
437521
437521S
207002
HD207002
HDC010267PA
HDC010267
2140032Z60
2140033Z77
2140034Z64
437521P

www.activeradiator.com

Call today to Order

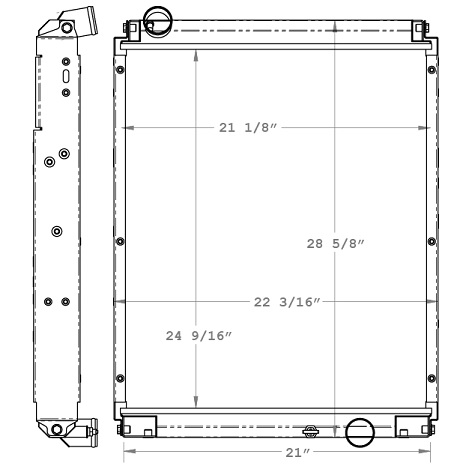

590005 - Mitsubishi FE Series 2005-2007

Share Via E-Mail Call For Availability

590005 - Mitsubishi FE Series 2005-2007 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

590005PT
Call for price
5900-05ST
Call for price

Core Dimensions

Height:
24.5625"
Width:
21.8125"
Depth:
2"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
1.875" (Left)
Outlet:
1.875" (Right)
Oil Cooler:
None

OE Numbers

590005
590005ST
590005PT
627RA005
239175
SC239175
TR9175
SCSI239175
559175
437531
437531S
HDC010266PA
HDC010266
0AMI5763F
ME409584
ME417294
MBFME409584
MBFME417294
437531P
437531S

www.activeradiator.com

Call today to Order

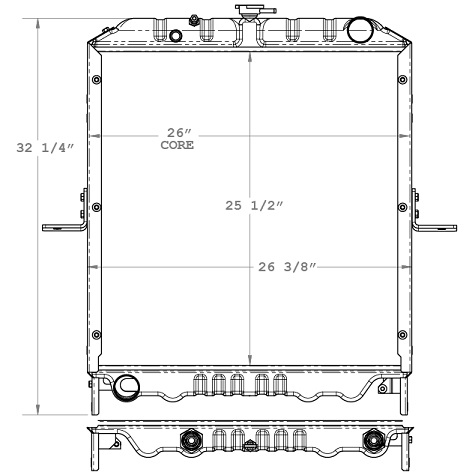

590007 - Nissan / UD 1800-3300 Radiator 2005-2007

Share Via E-Mail Call For Availability

590007 - Nissan / UD 1800-3300 Radiator 2005-2007 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

590007AT
Call for price

Core Dimensions

Height:
25.5"
Width:
26"
Depth:
1.4375"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
Top
Inlet:
2" (Right)
Outlet:
2" (Left)
Oil Cooler:
Bottom / Front

OE Numbers

590007
590007ST
590007PT
590007AT
629RA007
238796
SC238796
SCSI238796
TR8796
437481
437481P
LT9328
HDC010971PA
HDC010971
2420004260
2140036Z74
2140030Z0B
2141030Z0B
437481P
