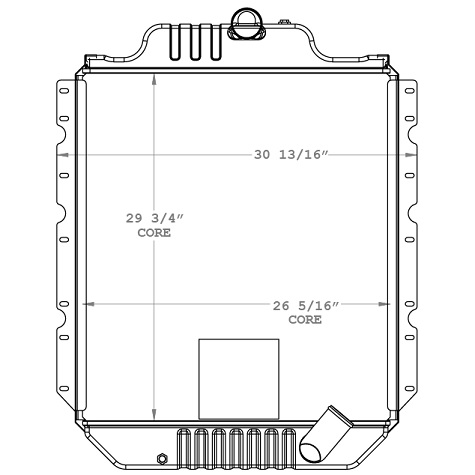

640065 - Intl 4700-4900 M.T. with PTO

Share Via E-Mail Call For Availability

640065 - Intl 4700-4900 M.T. with PTO Radiator

Special Notes

For this model with Oil Cooler go to 6400-66

Options / Pricing / Availability
To see availability click on the variation part number -

6400-65ST
Call for price

Core Dimensions

Height:
29.75"
Width:
26.3125"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.5" (Right / Curved)
Oil Cooler:
None

OE Numbers

640065
640065ST
238581
TR8581
SCSI238581
437309S
IN8188PTO
HDC010229
INT75
INT76
1A16485G
1A16832G
1A17872D
1A18575D
2007814C91
2007814C92
2007814C93
2025818C91

www.activeradiator.com

Call today to Order

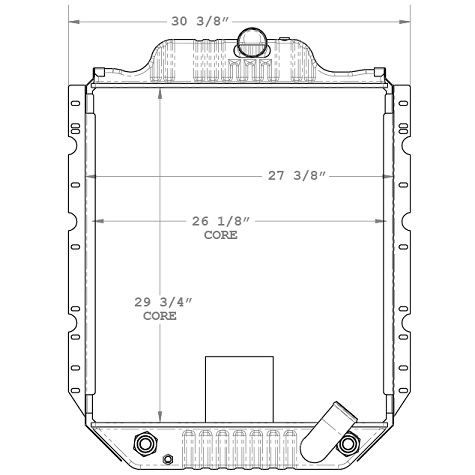

640066 - Intl 4700-4900 A.T. with PTO

Share Via E-Mail Call For Availability

640066 - Intl 4700-4900 A.T. with PTO Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640066AT
Call for price
6400-66ST
Call for price

Core Dimensions

Height:
29.75"
Width:
26.3125"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.5" (Right / Curved)
Oil Cooler:
Bottom

OE Numbers

640066
640066ST
615RA066
640065
640065ST
S6454PTO
238580
SC238580
TR8580
SCSI238580
558580
238581
SC238581
TR8581
SCSI238581
437309
437309S
552847N
SRM2847NCB
FLX000741
INT75
INT76
CVTU81884
CVTU81883
CAVTU81884
S6469
6469
HDC010228
HDC010228SK
HDC010229
1A16832G
1A16833G
1A16483G
1A16484G
1A16485G
1A16486G
1A17870D
1A17871D
1A17872D
1A17873D
1A17877D
1A18574D
2007804C91
2007804C92
2007805C91
2007805C92
2007814C91
2007814C92
2007814C93
2007815C91
2007815C92
2007815C93
2025818C91
2025819C91
437309S

www.activeradiator.com

Call today to Order

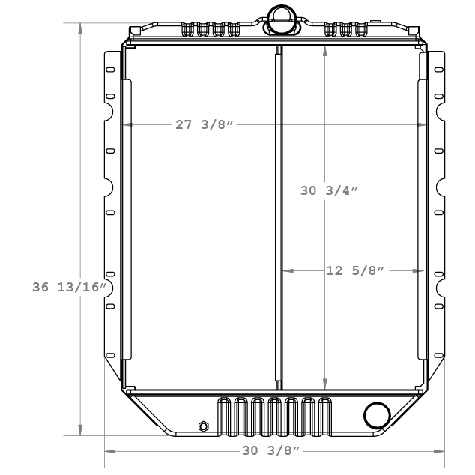

640067 - Intl Bus / 4700-4900 1/2 Core / M.T./Str. Con.

Share Via E-Mail Call For Availability

640067 - Intl Bus / 4700-4900 1/2 Core / M.T./Str. Con. Radiator

Special Notes

For radiator with oil cooler see 64-0111

Options / Pricing / Availability
To see availability click on the variation part number -

640067AT
Call for price
640067ST
Call for price

Core Dimensions

Height:
30.375"
Width:
12.1875"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.25" (Right)
Oil Cooler:
None

OE Numbers

640067
640067ST
238570
SC238570
SCSI238570
TR8570
INT63
INT72
FLX000721
SRK7325
437325
437325S
20063502
SPI20063502
ABPN2020063502
20063502A
SPI20063502A
ABPN2020063502A
11944
IN8158
CVTU81583
CAVTU81583
CVTU81584
11C8804
11C8804ST
HDC010609
615RA502
FLX000722
1697742C1
3A45047G
1697742C2
3A48121D2
2037786C91
1A17099G
2026621C91
1A16912G
2037786C93
1A18582D
2037786C92
1A17891D
1697740C1
3A45045G
2026623C91
1A17101G
2037788C91
2505146C1
3A50252D
2502720C1
2503571C1
437325S
FLTRI4709304

www.activeradiator.com

Call today to Order

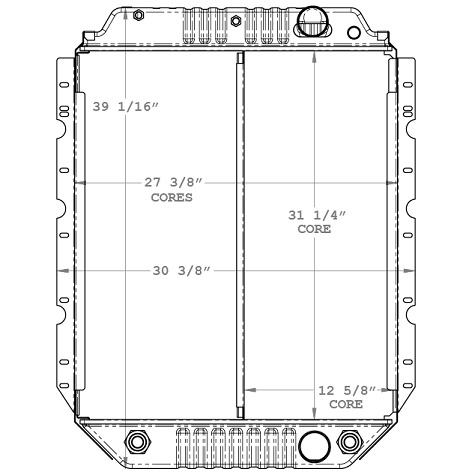

640068 - International Amtran FE & Genesis bus models

Share Via E-Mail Call For Availability

640068 - International Amtran FE & Genesis bus models Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

New Accounts 800-779-4223
Atlanta, GA 404-472-0790
Charlotte, NC 215-289-9480
Chicago, IL 815-725-1470
Cincinnati, OH 866-540-9638
Cincinnati, OH 859-581-7500
Dallas, TX 214-462-7855
Grand Rapids, MI 866-773-0028
Houston, TX 713-670-0220
Los Angeles, CA 562-921-0748
Philadelphia, PA 215-289-9480
Phoenix, AZ 602-338-9343
Tampa, FL 863-606-5999

Core Dimensions

Height:
31"
Width:
12.1875"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Right)
Outlet:
2.5" (Right)
Oil Cooler:
Bottom

OE Numbers

640068
640068ST
INT65
238545
SC238545
SCSI238545
TR8545
437328
437328S
557328
SRK7328
IN8294OC
CAVTU82944
FLX000778
6479
S6479
11C9211
11C9211ST
12263
RADIN134
316727
HDC010397
HDC010610
S6479
316727
1A16727
1A16727G
1697762C91
1697810C91
1697810C92
2200096C91
2200096C92
2501635C91
2501635C92
3A44582G
3A46556G
3A48123D1
3A48123D3
SPR28954
437328P

www.activeradiator.com

Call today to Order

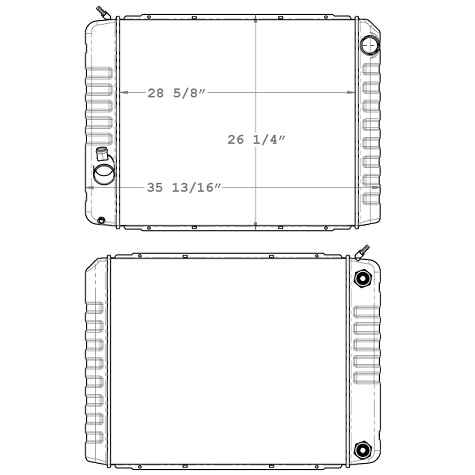

640069 - International Medium Duty 4000 Series 2008 & Newer

Share Via E-Mail Call For Availability

640069 - International Medium Duty 4000 Series 2008 & Newer Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640069PT
Call for price

Core Dimensions

Height:
28.75"
Width:
26.25"
Depth:
2.25"
Overall Height:
35.8125"

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.25" (Left)
Outlet:
2.5" (Right)
Oil Cooler:
Bottom/ Front

OE Numbers

640069
640069AP
640069PT
640069ST
615RA069
RA069
615RA069STD
RA069STD
IN32OC
IN32A
238639
TR8639
SC238639
SCSI238639
SCSI239081
SC239081
239081
TR9081
559081
559081A
FOR50
NAV30
NAV31
ABPN2020013534
20013534
SPI20013534
ABPN2020013535
20013535
SPI20013535
23943
9113
LT9113
LT9114
9114
S6482
HDC010225
HDC010225PA
HDC010225AA
HDC010444PA
HDC010444AA
HDC010444
437280
437280P
437280S
FLTRDFINT0817
2593282C91
2593282C92
2593282C93
2593283C91
2593283C92
2593294C91
2593295C92
2593295C91
2593303C91
2602786C91
2602787C91
1S180141
1S180142
1S180165
1S180235
1S180236
1S180267
1S1802880000
3E0115120000
3S0115120001
3S0115190000
3S0115190001
3S0134650000
3S11512
3S11519
3S13465
3S013467
8C4Z8005AA
8C4O8005AA
8C4O8005AB
8C4Z8005BA
8C4O8005BA
8C4O8005BB
2540016311288
2593297C91
437280P
FLTRDFINT0817

www.activeradiator.com

Call today to Order

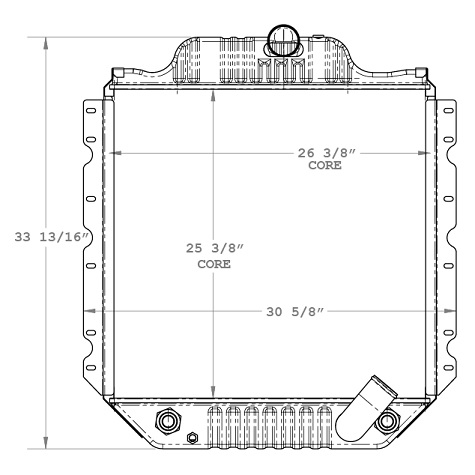

640075 - International CE Bus 2001-2004

Share Via E-Mail Call For Availability

640075 - International CE Bus 2001-2004 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640075AT
Call for price
6400-75ST
Call for price

Core Dimensions

Height:
25.5"
Width:
25.8125"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.5" (Right / Curved)
Oil Cooler:
Bottom

OE Numbers

640075
640075ST
615RA075
HDC010394
CVTU81913
CAVTU81913
CVTU81914
CAVTU81914
IN8191OC
238576
SC238576
SCSI238576
TR8576
INT40
2400593
1A18365D
3539695C91
20063552A
437322S

www.activeradiator.com

Call today to Order

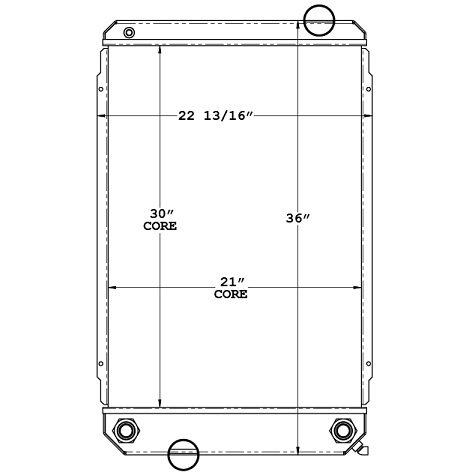

640077 - International 4000 Series / Ford F-650/750 Medium Duty Radiator 2004-2007

Share Via E-Mail Call For Availability

640077 - International 4000 Series / Ford F-650/750 Medium Duty Radiator 2004-2007 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

6400-77ST
Call for price

Core Dimensions

Height:
30.125"
Width:
21.25"
Depth:
2.25"
Overall Height:
36"

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.5" (Left)
Outlet:
2.5" (Right)
Oil Cooler:
Bottom

OE Numbers

640077
640077ST
3S10244
3E0102440000
3S0102440000
3S10245
3E0102450000
3S0102450000
4C4Z8005SA
4C4Z8005NA
4C4Z8005PA
2509944C1

www.activeradiator.com

Call today to Order

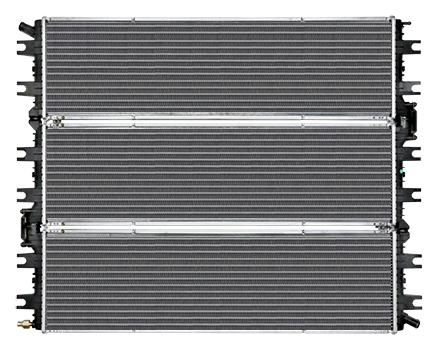

640080 - International Prostar Low Temperature Radiator

Share Via E-Mail Call For Availability

640080 - International Prostar Low Temperature Radiator Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640080PT
Call for price

Core Dimensions

Height:
36.625"
Width:
33.5625"
Depth:
1"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
1" (Upper Left)
Outlet:
1" (Lower Right)
Oil Cooler:
None

OE Numbers

640080
640080PT
615RA080
640090
640090PT
615RA090
IN37EGRPA
IN37OCMODPA
238627
SC238627
437423
437423P
HDK010108
HDK010109
1003721
1003721DS
1003778
1003778C
1040305
1040305FS
1050219
2604297C91
2604297C92
3697461F91
3697461F92
3697461F93
3697461F94
3697461F95
3697461F96
3697461F97
437422P
437423P

www.activeradiator.com

Call today to Order

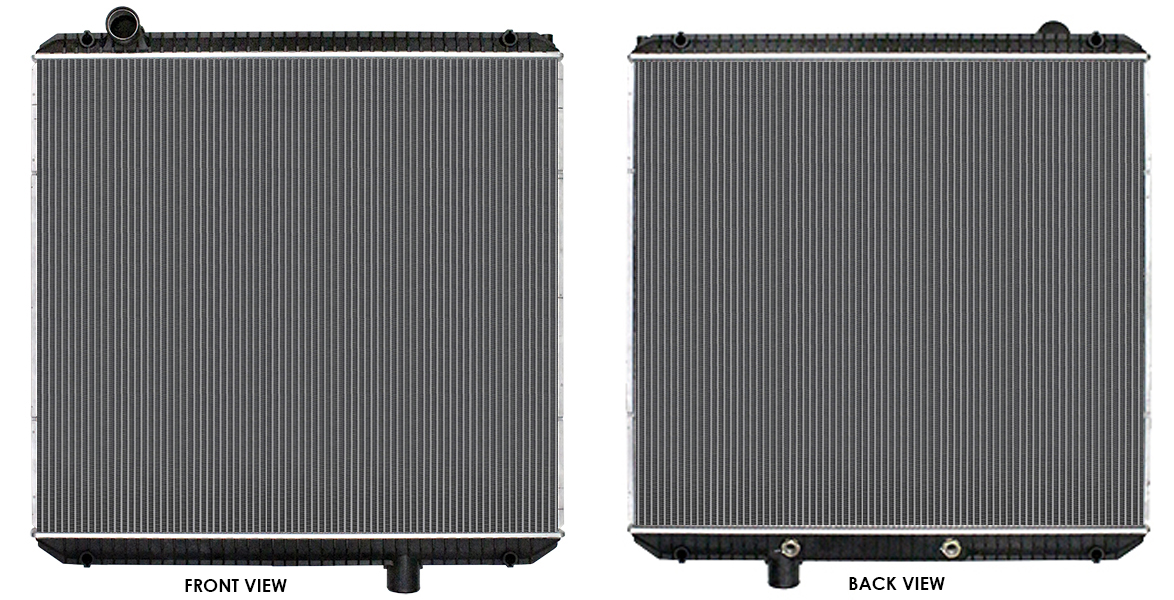

640081 - International

Share Via E-Mail Call For Availability

640081 - International Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640081PT
Call for price

Core Dimensions

Height:
35.5"
Width:
39.5625"
Depth:
2.1875"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Upper Left)
Outlet:
2.5" (Lower Right)
Oil Cooler:
Bottom

OE Numbers

640081
2594850C91
2594849C94
2594849C93
2594849C92
2594849C91
1N180229
1S180229
3625273F96
3625273F95
3625273F94
3625273F93
3625273F92
3625273F91
259850C91
3E0117490000
3S11749
25948572C91
3E0117500000
238788
LT9327
615RA081
437479P

www.activeradiator.com

Call today to Order

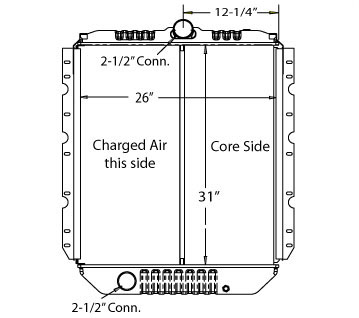

640082 - International Half Core Radiator without Oil Cooler

Share Via E-Mail Call For Availability

640082 - International Half Core Radiator without Oil Cooler Radiator

Special Notes

For this model with Oil Cooler go to 6400-60, 6400-60 replaces 6400-57 and 6500-58 with the addition of hose 3525777C1 (Gates # 22762)

Options / Pricing / Availability
To see availability click on the variation part number -

6400-82ST
Call for price

Core Dimensions

Height:
31"
Width:
12.1875"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.5" (Left)
Oil Cooler:
None

OE Numbers

640082
640082ST
437330S

www.activeradiator.com

Call today to Order

640090 - International 8600 Low Temp. Radiator Assembly 2010 - Newer

Share Via E-Mail Call For Availability

640090 - International 8600 Low Temp. Radiator Assembly 2010 - Newer Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640090PT
Call for price

Core Dimensions

Height:
36.625"
Width:
33.1875"
Depth:
0.75"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
1" (Top)
Outlet:
1" (Bottom)
Oil Cooler:
None

OE Numbers

640090
640090PT
615RA090
640080
640080PT
615RA080
IN37EGRPA
IN37OCMODPA
238627
SC238627
437423
437423P
HDK010108
HDK010109
1003721
1003721DS
1003778
1003778C
1040305
1040305FS
1050219
2604297C91
2604297C92
3697461F91
3697461F92
3697461F93
3697461F94
3697461F95
3697461F96
3697461F97

www.activeradiator.com

Call today to Order

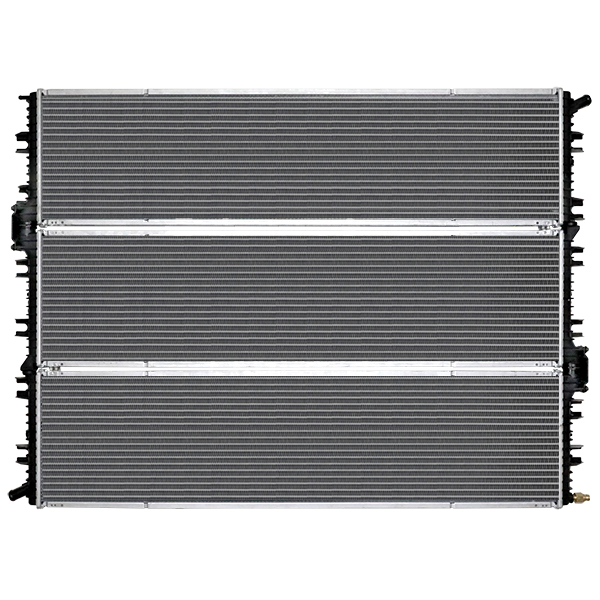

640093 - International WorkStar 7600 Low Temp Radiator 2010-Newer

Share Via E-Mail Call For Availability

640093 - International WorkStar 7600 Low Temp Radiator 2010-Newer Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640093PT
Call for price

Core Dimensions

Height:
45.625"
Width:
37.25"
Depth:
1"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Oil Cooler:
None

OE Numbers

640093
640093PT
615RA093
238701
SC238701
SCSI238701
TR8701
437567
437567P
HDK010107
WHDL000031
1003716
1003716DY
1003716DS
2604461C91
2604461C92
2604461C93
2604461C94
3852265F91
3852265F92
3852265F93
3852265F94
3852265F95
3852265F96
3852265F97
1040301
1040301FS
437567P
FLTRI7301114

www.activeradiator.com

Call today to Order

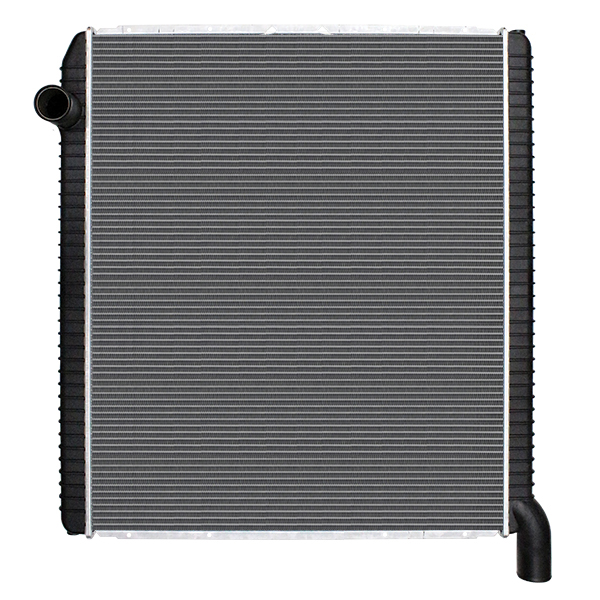

640094 - International 2008 5900I PayStar Work Truck

Share Via E-Mail Call For Availability

640094 - International 2008 5900I PayStar Work Truck Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640094PT
Call for price
6400-94ST
Call for price

Core Dimensions

Height:
29.375"
Width:
37.125"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.5" (Right)
Outlet:
2.5" (Left)
Oil Cooler:
None

OE Numbers

640094
640094ST
615RA094
238791
SC238791
SCSI238791
TR8791
HDC010966
HDC010966PA
LT9316
2592280C91
2592373C91
2592373C92
2592373C93
1A180140
1E180140
1S180140
1A1801400000
1E1801400000
1S1801400000
1A180189
1E180189
1S180189
1A180189000
1E180189000
1S180189000
3A0113910000
3E0113910000
3S0113910000
437478P

www.activeradiator.com

Call today to Order

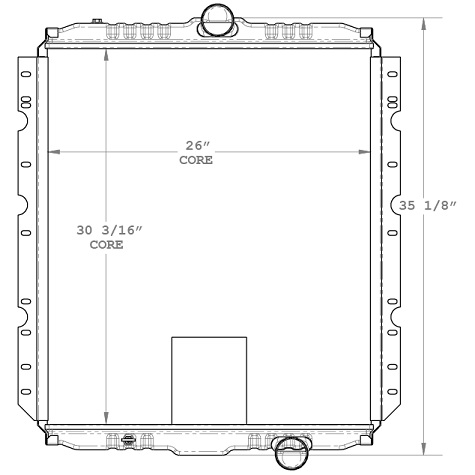

640095 - International Medium Duty Full Core Radiator with FEPTO up to 1995

Share Via E-Mail Call For Availability

640095 - International Medium Duty Full Core Radiator with FEPTO up to 1995 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

6400-95ST
Call for price

Core Dimensions

Height:
30.1875"
Width:
26"
Depth:
2.125"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Top Center)
Outlet:
2.5" (Bottom Right)
Oil Cooler:
None

OE Numbers

640095
1649774C1
1649774C2
493354C1
493355C1
493355C2
493356C1
493356C2
493356C3

www.activeradiator.com

Call today to Order

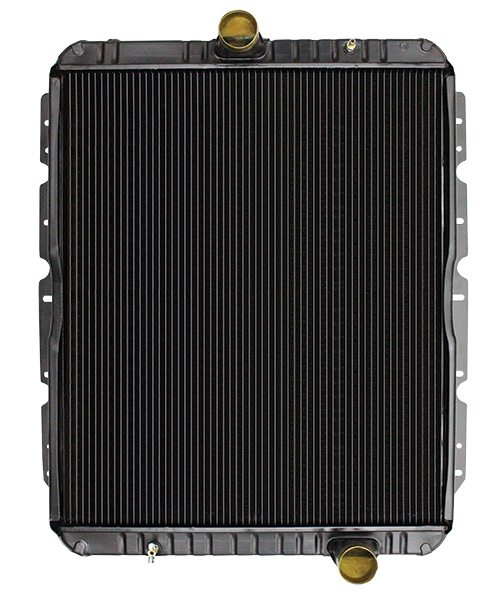

640096 - International Medium Duty Full Core Radiator up to 1995

Share Via E-Mail Call For Availability

640096 - International Medium Duty Full Core Radiator up to 1995 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

6400-96ST
Call for price

Core Dimensions

Height:
30.1875"
Width:
26"
Depth:
2.125"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Top Center)
Outlet:
2.5" (Bottom Right)
Oil Cooler:
None

OE Numbers

640096
640096ST
230327
SC230327
232123
SC232123
238564
SC238564
437301
437301S
6462
INT36
S6462
SRM3274
20063523
SPI20063523
ABPN2020063523
IN8179
1A017918000
1A17918
1A17918D
2930011649216
FLX000751
HDC010392
HDC010392SK
493359C1
493359C2
493359C3
493359C4
493661C1
493661C2
493661C3
493362C1
493362C2
493362C3
NAV493359C1
NAV493359C2
NAV493359C3
NAV493359C4
NAV493362C1
NAV493362C2
NAV493362C3
1001395
FLTRI4909091

www.activeradiator.com

Call today to Order

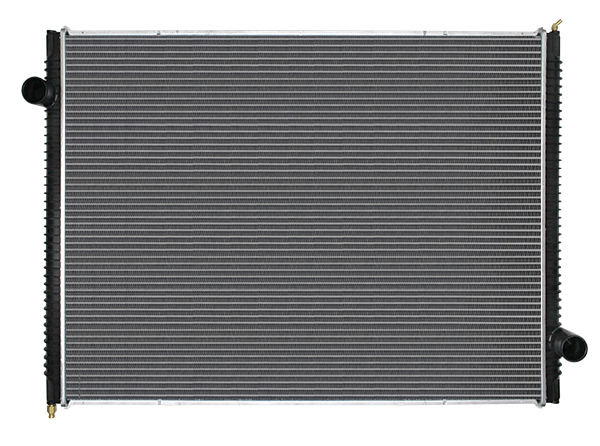

640097 - International WorkStar 7600 High Temp Radiator Core and Tank 2010-Newer

Share Via E-Mail Call For Availability

640097 - International WorkStar 7600 High Temp Radiator Core and Tank 2010-Newer Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

640097PT
Call for price

Core Dimensions

Height:
45.625"
Width:
34.75"
Depth:
2.125"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Oil Cooler:
None

OE Numbers

640097
640097PT
615RA097
238702
SC238702
SCSI238702
TR8702
HDC010828
HDC010828P
HDC010829
HDC010829P
HDC010830
HDC010830P
HDC010921
HDC010921PA
HDC010921AA
20013550
SPI20013550
ABPN2020013550
1003715
1003715D
1003715E
1003715F
1003715GS
1040301
1040301FS
1102557
1102557BS
2604454C91
2604454C92
2604454C93
2604454C94
2604454C95
2604454C96
3852265F91
3852265F92
3852265F93
3852265F94
3852265F95
3852265F96
3852265F97
3852265F98
2513229C1
437426P
FLTRIWRK1013

www.activeradiator.com

Call today to Order

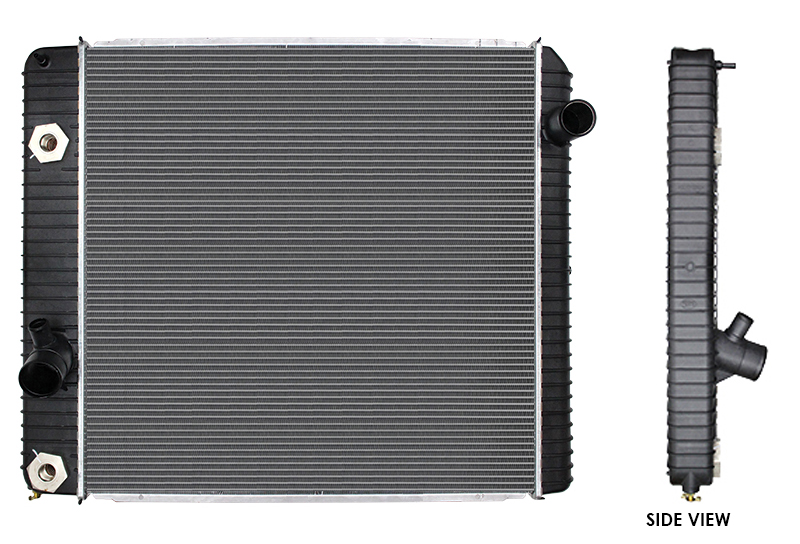

640098 - International Medium Duty 2010 - Newer

Share Via E-Mail Call For Availability

640098 - International Medium Duty 2010 - Newer Radiator

Special Notes

20 7/8" Oil Cooler on Engine Side of Outlet Tank, For Oil Cooler on Grill Side go to 64-0100

Options / Pricing / Availability
To see availability click on the variation part number -

640098PT
Call for price

Core Dimensions

Height:
28.5"
Width:
28.5"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.25" (Left)
Outlet:
2.5" (Right)
Oil Cooler:
Bottom

OE Numbers

640098
640098PT
615RA098
RA098
615RA098STD
238704
SC238704
SCSI238704
TR8704
238727
SC238727
SCSI238727
TR8727
437237
437237P
437237S
437449
20013537
SPI20013537
ABPN2020013537
LT9272
9272
LT9266
NAV46
NAV56
HDC010885
HDC010885PA
HDC010888
HDC010888PA
3E0124840000
3S012484
3E0124850000
3S012485
3S013471
2601756C91
2601756C92
2601807C91
2601807C92
1S18022
1S180256
1S18027
1S1802910000
2601251C94
2601251C93
2601251C92
2601251C91
2601250C94
2601250C93
2601250C92
2601250C91
2601756C92
437449P
437237P
437317P
FLTRICBS4143

www.activeradiator.com

Call today to Order

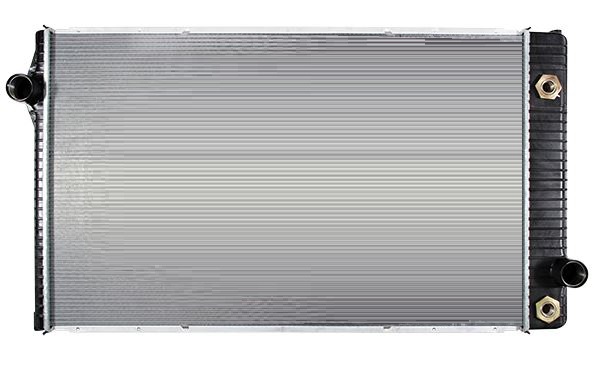

640099 - International WorkStar 7000 Radiator with internal oil cooler 2008-Newer

Share Via E-Mail Call For Availability

640099 - International WorkStar 7000 Radiator with internal oil cooler 2008-Newer Radiator

Special Notes

For this model without Oil Cooler go to 6400-26

Options / Pricing / Availability
To see availability click on the variation part number -

640099PT
Call for price

Core Dimensions

Height:
44.25"
Width:
27.625"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.5" (Right)
Outlet:
2.5" (Left)
Oil Cooler:
Bottom

OE Numbers

640099
640099ST
615RA099
RA099
640026
640026ST
640026AP
6426
615RA026
RA026
S6426
556426A
NAV24
IN8201
CTVTU82013
CTVTM82013
238698
SC238698
SCSI238698
TR8698
239092
SC239092
TR9092
SCSI239092
559092A
238656
SCSI238656
TR8656
HDC010419
HDC010419DT
HDC010419PA
HDC010798
HDC010837PA
HDC010837
HDC010798
437417
437417P
437417S
437285
437285P
437285S
LT1034
1034
LT1310
1310
1N180135
1N180186
1S180135
1S180186
2591761C91
2591761C92
2591827C91
3608506F91
3608506F92
3608506F93
3S0113970000
2591762C91
2591762C92
2591762C93
1S180134
1S180185
1S1803270000
2591828C91
2591828C92
3S0113960000
2930015565426
1N180135
1N180186
1S180135
1S180186
2591761C91
2591761C92
2591827C91
3608506F91
3608506F92
3608506F93
3S0113970000
2604117C92
2604196C91
2604119C92
2604119C93

www.activeradiator.com

Call today to Order

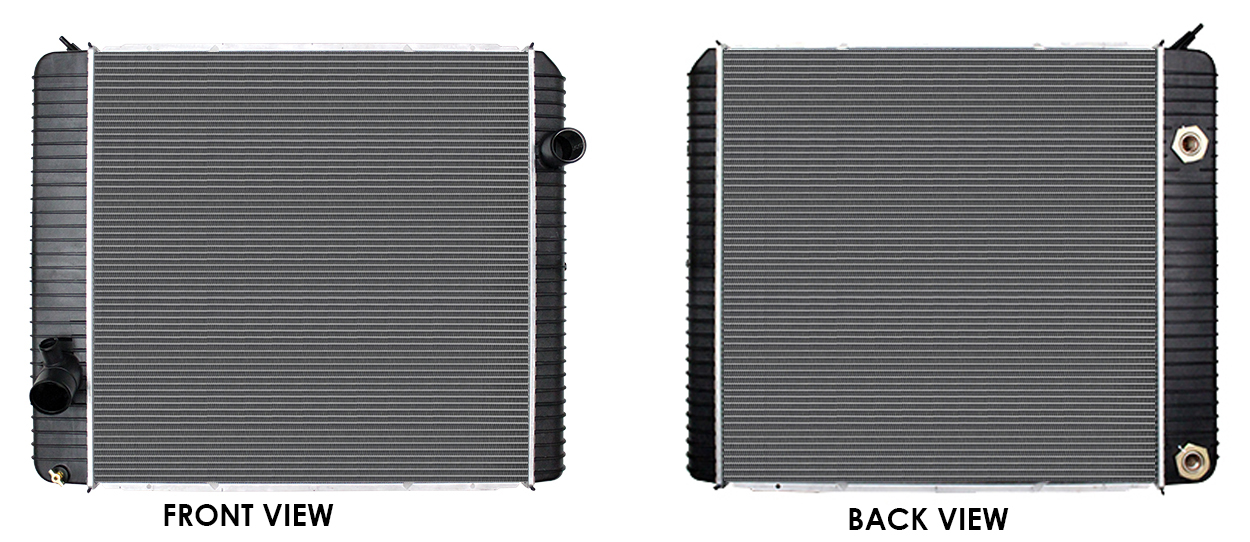

640100 - International Dura Star Radiator 2008 - 2010

Share Via E-Mail Call For Availability

640100 - International Dura Star Radiator 2008 - 2010 Radiator

Special Notes

20 7/8" Oil Cooler on Grill Side of Outlet Tank, For Oil Cooler on Engine Side go to 6400-98

Options / Pricing / Availability
To see availability click on the variation part number -

640100PT
Call for price

Core Dimensions

Height:
28.5"
Width:
28.5"
Depth:
2.25"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Crossflow
Filler Neck:
None
Inlet:
2.25" (Left)
Outlet:
2.5" (Right)
Oil Cooler:
Bottom

OE Numbers

640100
640100ST
640100PT
615RA100
238661
SC238661
SCSI238661
238725
SC238725
SCSI238725
CR8661
TR8661
TR8725
NAV33
LT9163
437296
437296P
HDC010881
HDC010881PA
HDC010945
HDC010945PA
20013551
SPI20013551
ABPN2030013551
2593302C91
2593302C92
3S11513
3S0115130000
3E11513
3E0115130000
1S180144
2593301C91
3S013466
2593297C92
437296P
FLTRI4409600

www.activeradiator.com

Call today to Order

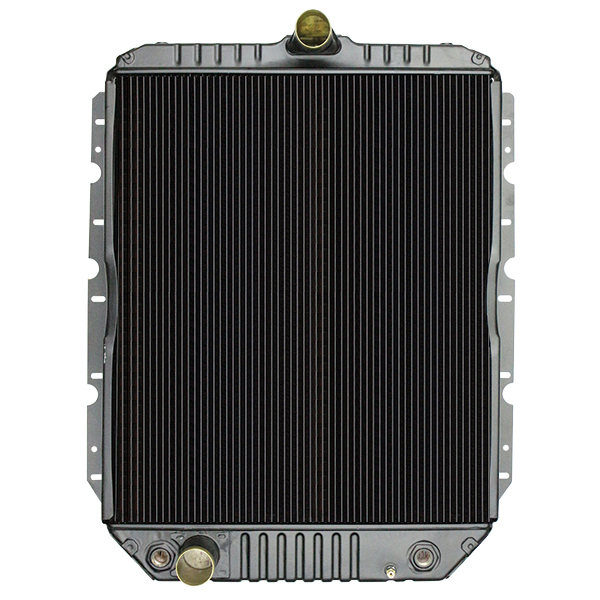

640101 - International medium duty radiator up to 1995

Share Via E-Mail Call For Availability

640101 - International medium duty radiator up to 1995 Radiator

Special Notes

Options / Pricing / Availability
To see availability click on the variation part number -

64-0101ST
Call for price

Core Dimensions

Height:
31"
Width:
26.3125"
Depth:
1.4375"
Overall Height:
-

Description

Product Type:
Radiator
Orientation:
Downflow
Filler Neck:
None
Inlet:
2.5" (Center)
Outlet:
2.5" (Left)
Oil Cooler:
Bottom

OE Numbers

640101
640101ST
615RA101
232124
SC232124
SC230326
230326
437302
437302S
INT30
INT31
INT32
S6466
IN8166OC
20063503
SPI20063503
ABPN2020063503
2930011357506
2930012735606
CAVTU81663
CAVTU81664
RP1309087
FLX000750
HDC010038
HDC010491SK
HDC010493
HDC010574
1001975
1002842
1668901C91
1668901C92
1668901C93
493352C1
493352C2
493353C1
493353C2
493353C3
588195C1
1A16150G
1A16151G
1A17916D
437302S
