Find Your Part (w/ Details)
| Part Number | Height | Width | Depth | Filler Neck | Product | Inlet | Outlet | Oil Cooler | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
www.activeradiator.com Call today to Order

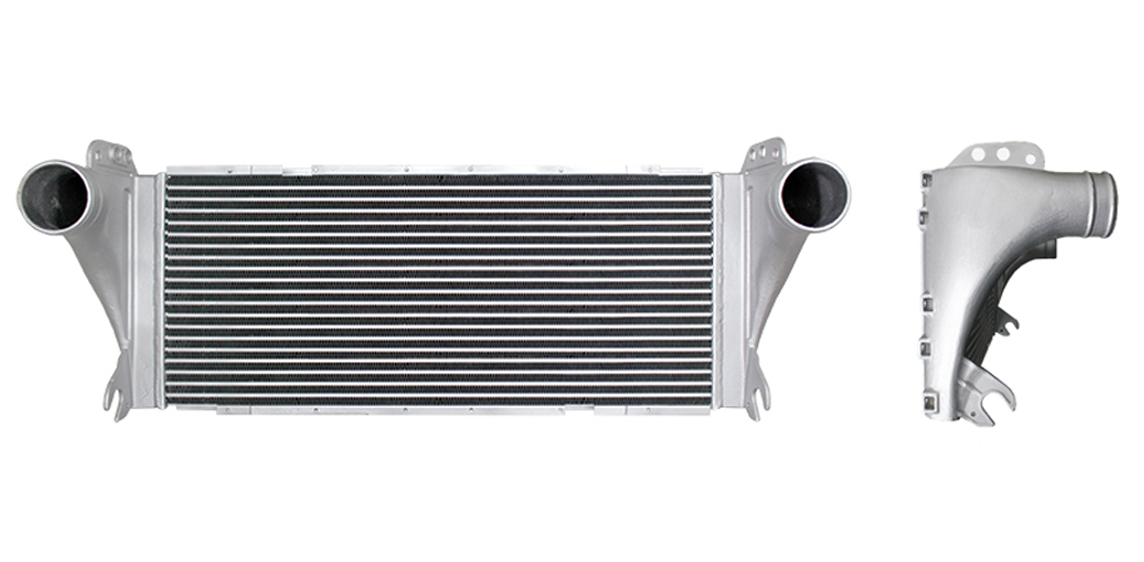

PET17720 - Peterbilt 330, 335, 340 and Kenworth T300, T370 2008 to Present Special Notes Very similar to PET17719 verify 16" core width
Options / Pricing / Availability
Call for price
Core Dimensions Height: 37.125"
Width: 16"
Depth: 2"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Oil Cooler: None OE Numbers
PET17720
PET17720N PET17720R 222304 SC222304 SCSI222304 44012513 SPI44012513 HDH010773 24509239 P2318001 W6932001 441354 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

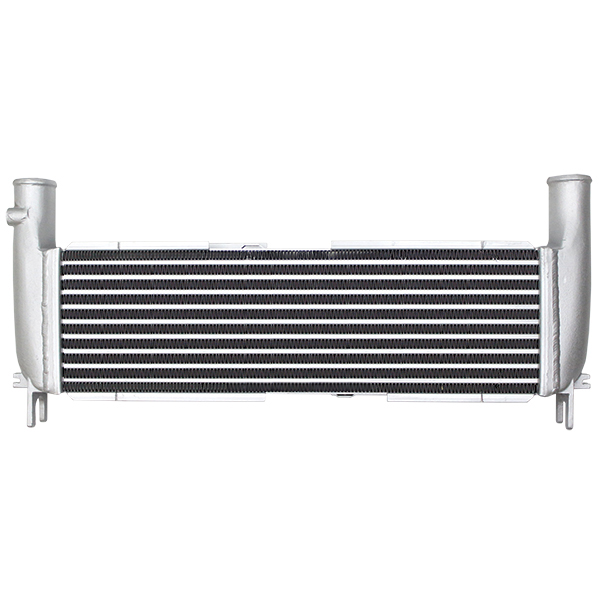

PET17721 - Peterbilt 320 & 520 Sanitation Truck Lower Charge Air Cooler 2012 & Newer Special Notes The Peterbilt 320 & 520 Sanitation Trucks have an upper and lower Charge Air Cooler. PET17721 is the Lower CAC. See PET17722 for the Upper CAC.
Options / Pricing / Availability
Call for price
Core Dimensions Height: 26.125"
Width: 7.75"
Depth: 2.5"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Oil Cooler: None OE Numbers
PET17721
PET17721N PET17721R X530001 FW528001 F3161660101021 F3161666101021 F3161661202011 F3161661102011 222366 X5931001 EC172001 441359 FW530001 1030538 1030538AS | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

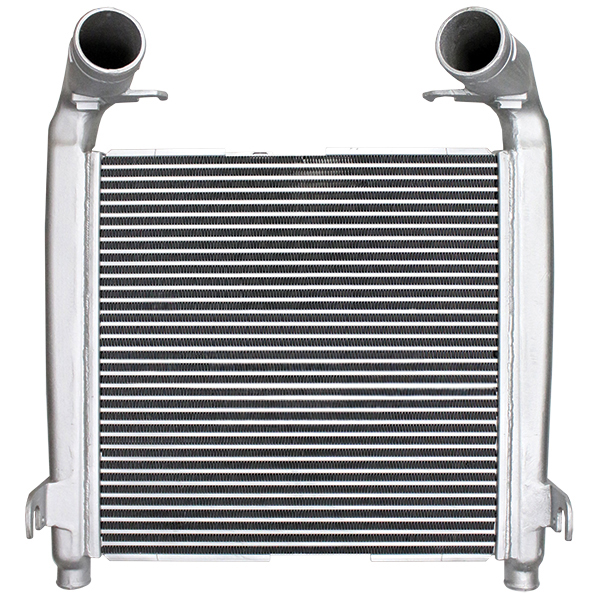

PET17722 - Peterbilt 320 & 520 Sanitation Truck Upper Charge Air Cooler 2012 & Newer Special Notes The Peterbilt 320 & 520 Sanitation Trucks have an upper and lower Charge Air Cooler. PET17722 is the Upper CAC. See PET17721 for the Lower CAC.
Options / Pricing / Availability
Call for price
Core Dimensions Height: 26.125"
Width: 26"
Depth: 2.5"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Two 4" Connection to Turbo) Outlet: 2.25" (Two 2 1/4" connection to lower cooler) Oil Cooler: None OE Numbers
PET17722
PET17722N PET17722R X5931001 W0993001 FW528001 F3161660101021 F3161666101021 F3161661202011 F3161661102011 EB565001 222367 X5929001 EC171001 1030537 1030537AS | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

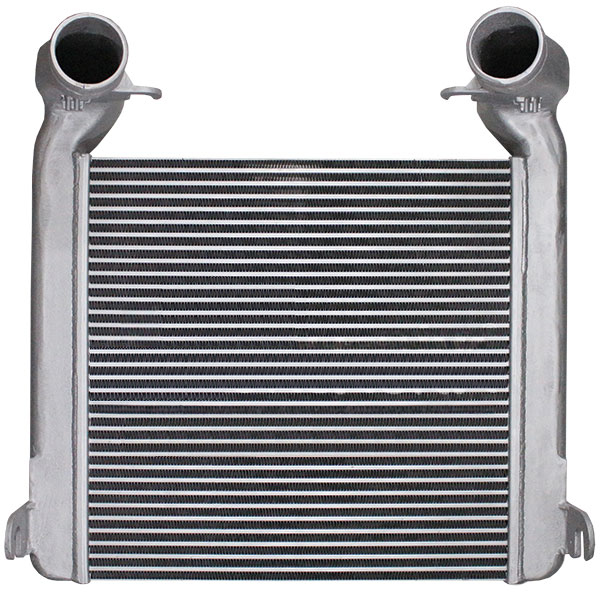

PET17723 - Paccar 2008 to present Kenworth and Peterbilt Sanitaion Trucks. Special Notes Very similar to PET17717. Please verify the position of the lower mounting hook or by OEM part number before ordering.
Options / Pricing / Availability
Call for price
Core Dimensions Height: 26.4375"
Width: 26.6875"
Depth: 3"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Oil Cooler: None OE Numbers
PET17723
PET17723N PET17723R U0985001 T8789001 222382 FT267001 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

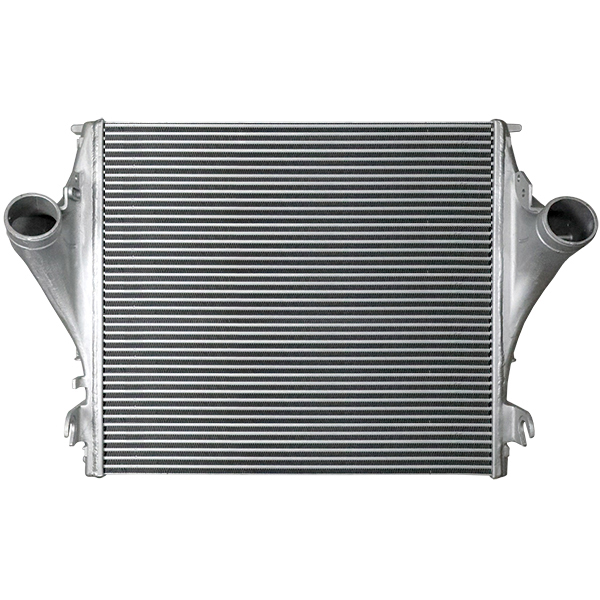

PET17724 - Peterbilt 579 and Kenworth T680 Charge Air Cooler Special Notes See 770057PT for the radiator.
Options / Pricing / Availability
Call for price
Core Dimensions Height: 32.625"
Width: 29.375"
Depth: 2"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Oil Cooler: None OE Numbers
PET17724
PET17724N PY092001 F3112831101020 F3112831111020 F3112831112020 F3112831121020 F3112831122020 F3112831102020 F3112831102010 F3112831101010 F311283112010 F3112831121010 F3112831122010 F3112831132010 MR821001 222408 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order
TRA12001 - Icarus / NABI Charge Air Cooler Special Notes
Options / Pricing / Availability
Core Dimensions Height: 37.625"
Width: 16.4375"
Depth: 2.8125"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12001
TRA12001N TRA12001R TRA12001ED ICDAC275A DURICDAC275A DHTIC275A DHT275A 3741275A | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order
TRA12002 - Thomas Bus Charge Air Cooler Special Notes
Options / Pricing / Availability
Core Dimensions Height: 29.25"
Width: 24.9375"
Depth: 1.5"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12002
TRA12002N TRA12002R 1199 BTC1199 BT1199 CAC199 WSR1199 TB101A THODAC220A DURTHODAC220A DHTTHO220A DHT220A 3741220A SRMTHO220A 441243 FLX011076 HDH010337 1E3362 441243 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order
TRA12003 - Transit Bus Charge Air Cooler Special Notes
Options / Pricing / Availability
Core Dimensions Height: 25.25"
Width: 20.1875"
Depth: 2.8125"
Overall Height: -
Description Product Type: Charge Air Cooler Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12003
TRA12003N TRA12003R BTC1198C BT1198C CAC198C 1198C WSR1198C 222207 SCSI222207 CA2207 SC222207 DURFLCDAC190B FLCDAC190B DHTFLC190B DHT190B FLX190B 3741190B FLX190B 441235 FLX011047 HDH010335 HDH010335BP SRMFLC190B 465001 NB4031 RHT060 1E4031 IE4031 441235 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

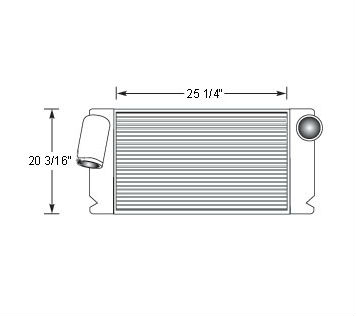

TRA12004 - Transit Bus Charge Air Cooler Special Notes
Options / Pricing / Availability
Core Dimensions Height: 25.25"
Width: 20.1875"
Depth: 2.8125"
Overall Height: -
Description Product Type: Charge Air Cooler Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12004
TRA12004N TRA12004R BTC1198B BT1198B 1198B CAC198B WSR1198B SCSI222123 CA2123 222123 SC222123 441234 FLX190A SRMFLC190A FLCDAC190A DURFLCDAC190A DHTFLC190A DHT190A 3741190A 17V9816 FLX011046 HDH010334 1E3995 1E3985 1E3635 EPR121419 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

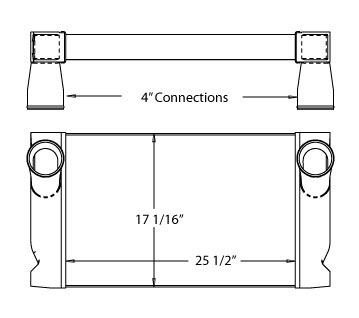

TRA12005 - Gillig Charge Air Cooler Special Notes Please compare to TRA12040 before ordering.
Options / Pricing / Availability
Call for price
Core Dimensions Height: 25.25"
Width: 17"
Depth: 2.8125"
Overall Height: -
Description Product Type: Charge Air Cooler Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12005
TRA12005ED TRA12005N TRA12005R BTC1198D BT1198D 1198D CAC198D WSR1198D 222228 SCSI222228 CA2228 222208 SC222208 SCSI222208 CA2208 GB230B GILDAC230B DURGILDAC230B DHTGIL230B DHT230B 3741230B FLX011015 FLX11015 SRMGIL230B 44GIL230B O5169 1E4055 MOD1E4317 1E4317 1E0043170000 1E5169 HDH010572 HDH010572BP HDH010548 HDH010548BP HDH010496 HDH010333 441269 8218924000 441267 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

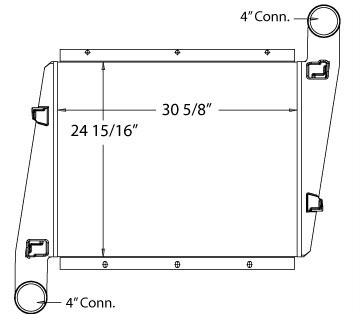

TRA12006 - Gillig Charge Air Cooler Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 30"
Width: 25.25"
Depth: -
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Oil Cooler: None OE Numbers
TRA12006
TRA12006N TRA12006ED TRA12006R BTC1199B BT1199B 1199B CAC199B WSR1199B 222216 SC222216 SCSI222216 CA2216 GB230A GILDAC230A DURGILDAC230A DHTGIL230A DHT230A 3741230A 441244 FLX011005 SRMGIL230A 44GIL230A HDH010338 1E3884 1E4014 1E4209 1E4210 3E7964 290407 818708 5329004000 441244 441266 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

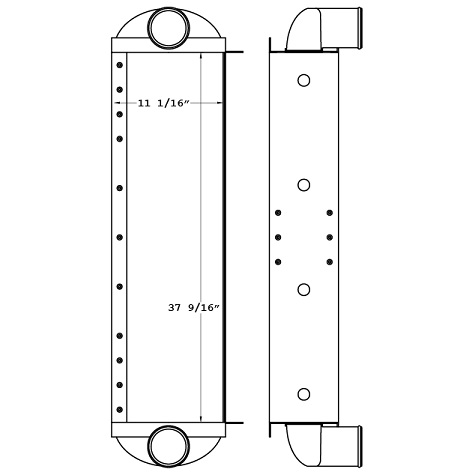

TRA12007 - New Flyer D40LF - DE40LF 2001-2007 Charge Air Cooler Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 38"
Width: 11.25"
Depth: 3.25"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12007
TRA12007ED TRA12007N TRA12007R HDH010680 222312 SC222312 SCSI222312 FB0049 NFIDAC155C DHTNFI155C DURNFIDAC155C 3741155C DHT155C 44015000 SPI44015000 441278 6720040C 8200292071 DR131940 81127A CAC427 FLX11071 FLX190N NFC302CA NFC304CA ZGKN002 ZBKN002 ZGKN006 ZBKN006 SRMNF155K 087779 6720049 76008356 6720040 441278 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order
TRA12011 - MCI Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 28.25"
Width: 26"
Depth: 2.875"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12011
TRA12011ED TRA12011N TRA12011R CAC414 MCIDAC81B DURMCIDAC81B DHTMCI81B DHT81B 374181B FLX011033 SRMMCI81B 44MCI81B 9L3246 1E4628 6L1273 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order
TRA12012 - Special Notes
Options / Pricing / Availability Core Dimensions Height: -
Width: -
Depth: -
Overall Height: -
Description Product Type: Charge Air Cooler Oil Cooler: None OE Numbers
TRA12012
TRA12012R | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

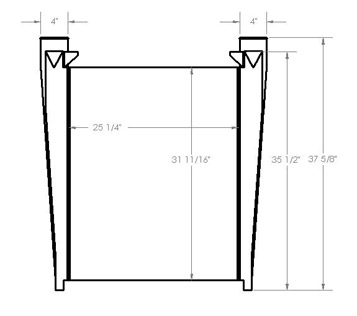

TRA12013 - MCI D4000, D4005, D4500 and D4505 2003-2007 Charge Air Cooler Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 25"
Width: 31.5"
Depth: 3"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: " (Left) Outlet: " (Right) Oil Cooler: None OE Numbers
TRA12013
TRA12013ED TRA12013N TRA12013R HDH010632 441325 222298 SC222298 CA2298 FLX011105 CAC411 CFLX190I MCIDAC81H DURMCIDAC81H DHTMCI81H DHT81H 374181H 1E5629 1E5629D 1E0056290000 6L1308 1E5627 1E5335 441325 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

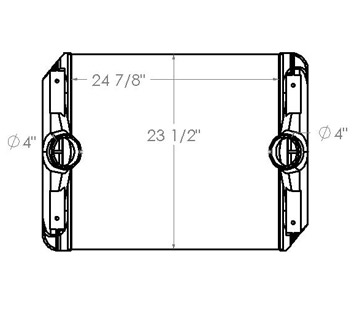

TRA12014 - MCI 102E Charge air cooler Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 25.125"
Width: 23.5"
Depth: 2.8125"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Downflow Filler Neck: None Inlet: 4" (Top) Outlet: 4" (Bottom) Oil Cooler: None OE Numbers
TRA12014
TRA12014ED TRA12014N TRA12014R BTC1199G BT1199G 1199G WSR1199G CAC410 MCIDAC81C DURMCIDAC81C DHTMCI81C DHT81C 374181C 06011034 06011016 1E4208 1E4208D 3E9389 DR297340 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

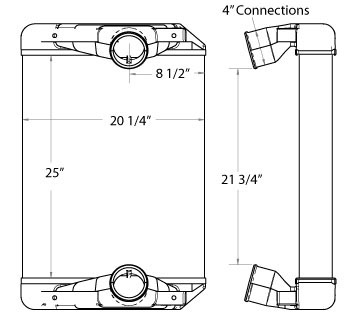

TRA12015 - MCI E4500 and J4500 Charge Air Cooler Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 24.625"
Width: 20.125"
Depth: 4.125"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Downflow Filler Neck: None Inlet: 4" (Top) Outlet: 4" (Bottom) Oil Cooler: None OE Numbers
TRA12015
TRA12015ED TRA12015N TRA12015R CAC413 MCIDAC81G DURMCIDAC81G DHTMCI81G DHT81G 374181G 06011056 1E5433 MOD1E5433 1A19134 06011051 EPR16281D 1E0054330000 1E005433 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

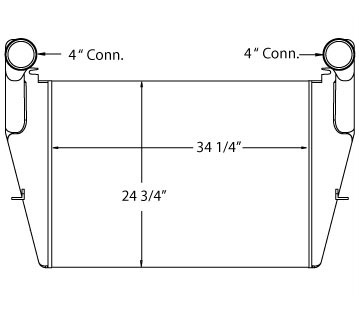

TRA12016 - Prevost Special Notes
Options / Pricing / Availability
Core Dimensions Height: 34.25"
Width: 24.75"
Depth: 1.9375"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12016
TRA12016N TRA12016R BTC1199F BT1199F 1199F CGJ1199F WSR1199F SCSI222220 SC222220 222220 CA2220 198532 PREDAC185G DURPREDAC185G DHTPRE185G DHT185G 3741185G 441206 PRST174 1030268 1030268E 1030268ES 61230246 550445 550845 550820 1040153 441206 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

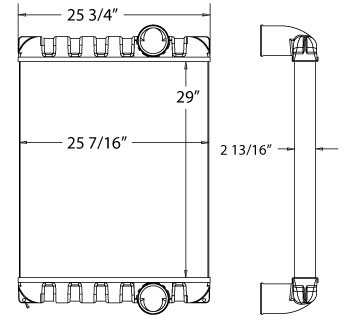

TRA12018 - Prevost H3-41 and H3-45 Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 29"
Width: 25.4375"
Depth: 2.875"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Filler Neck: None Inlet: 4" (Left) Outlet: 4" (Right) Oil Cooler: None OE Numbers
TRA12018
TRA12018ED TRA12018N TRA12018R PREDAC185E DURPREDAC185E DHTPRE185E DHT185E 3741185E FLX011057 SRMPRE185E 44PRE185E 1030241 1030241FS 1030241GS 1040149 550819 550847 550959 818963 PRST173 441339 | |||||||||||||||||||||||||||||||||||||||||
|
www.activeradiator.com Call today to Order

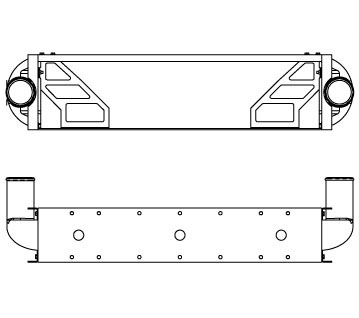

TRA12019 - Neoplan Articulated bus Special Notes
Options / Pricing / Availability
Call for price
Core Dimensions Height: 41.5"
Width: 10.75"
Depth: 4.5"
Overall Height: -
Description Product Type: Charge Air Cooler Orientation: Crossflow Inlet: " (Left) Outlet: " (Right) Oil Cooler: None OE Numbers
TRA12019
TRA12019ED TRA12019N TRA12019R 06020127 1248 | |||||||||||||||||||||||||||||||||||||||||
