Peterbilt Radiators – Browse Replacement Parts
Do you need a new Peterbilt radiator, or can it be repaired? How can you tell if the radiator is repairable or if you need a new one? Major coolant leaks are a common indicator that a new radiator is your best option. Active is here to help! We can help to bridge the gap in the current supply chain issues and get you the parts that you need!
The main component of your cooling system is the radiator, it keeps your engine at the optimal operating temperature. This is why it is so important to ensure that it is in working order. While using your vehicle, you can be confident that should you need repair, we can help you through that! If your radiator is beyond any repair, Active Radiator has the most popular Peterbilt replacement parts in stock across the U.S. If we do not have it we will make it for you! For example, we have the 770009 Radiator for your 2000-2004 Peterbilt 387 side by side.
Experience the Active advantage today! We’ll help get your equipment back in service quickly with minimal downtime. Find a location near you to buy a Peterbilt radiator replacement or schedule to bring us your radiator to evaluate for repair.

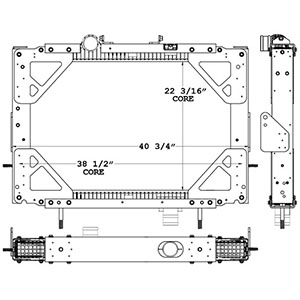

Peterbilt 330 / 335 / 340
OE NUMBERS
770014AP
770014ST
770014PT
7714
S7714
SRM7714
633RA014
RA014
PET16
KW71
239167
SCSI239167
TR9167
559167
559167A
238630
TR8630
SCSI238630
437399
437399P
437399S
CTVTM82893
CTVTU82893
RADPE110
PE110
AFA000525
FLX000525
20012511
SPI20012511
ABPN2020012511
HD205006
205006
LT1036
1036
HDC010178
HDC010631
HDC010178PA
HDC010178SK
BHTH5408
H5408
N3994001
N3994002
N3994003
F3161221302120
F3161221222110
F3161221222110
F3161221202110
F3161222201030

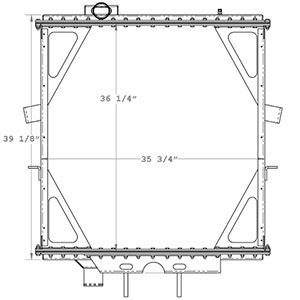

Peterbilt 357 and 385 Radiator with Drivers Lower Connection
OE NUMBERS
770032BT
S7732
P3LPD
0706657A047
HDC010832
1A19461
238640
Part Number | Height | Width | Depth | Filler Neck | Product | Inlet | Outlet | Oil Cooler |
---|---|---|---|---|---|---|---|---|
650017 | 40.5 | 30.75 | 2 | None | Radiator | Left | Right | None |
650017PTWF | 40.5 | 30.75 | 2 | None | Radiator | Left | Right | None |
650018 | 43 | 31.3125 | 2.25 | None | Radiator | Left | Right | None |
650030 | 29.5 | 22.3125 | 1.9375 | None | Radiator | Right | Right | None |
650032 | 34.0625 | 39.5625 | 1.5 | None | Radiator | Left Center | Bottom Right | None |
650032PTWF | 34.0625 | 39.5625 | 1.5 | None | Radiator | Left Center | Bottom Right | None |
770001 | 33.5 | 27.4375 | 2.25 | None | Radiator | Left | Left | None |
770003 | 34.5 | 25.625 | 1.5 | None | Radiator | Left | Right | None |
770004 | 34.5 | 25.625 | 2.25 | None | Radiator | Left | Right | None |
770005 | 34.625 | 16 | 2.25 | None | Radiator | Left | Right | None |
770006 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770008 | 36.125 | 26.0625 | 2 | None | Radiator | Center | Left | None |
770009 | 32.25 | 23 | 2.25 | None | Radiator | Left | Right / Bottom | None |
770011 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770014 | 22.1875 | 38.5 | 2 | None | Radiator | Left | Right / Bottom | None |
770014PTWF | 22.1875 | 38.5 | 2 | None | Radiator | Left | Right / Bottom | None |
770015 | 34 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770015PTWF | 34 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |

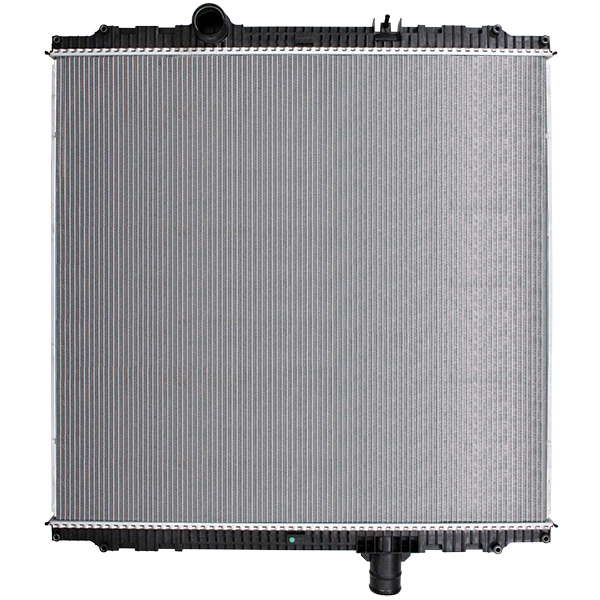

770016 | 36.9375 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770016PTWF | 36.9375 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770017 | 42.875 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770017PTWF | 42.875 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770019 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770021 | 36 | 36.75 | 2 | None | Radiator | Left | Right / Bottom | None |
770021PTWF | 36 | 36.75 | 2 | None | Radiator | Left | Right / Bottom | None |
770022 | 40.5 | 30.3125 | 2.25 | None | Radiator | Top Left | Bottom Right | None |
770023 | 36.5 | 29.6875 | 2.25 | None | Radiator | Right / Top | Left / Bottom | None |
770024 | 36.5 | 29.6875 | 2.25 | None | Radiator | Right / Top | Left / Bottom | None |
770025 | 22 | 25.125 | 1.9375 | None | Radiator | Right | Right | Bottom |
770028 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770029 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Left Center | None |
770031 | 36.25 | 34.5 | 2.25 | None | Radiator | |||
770032 | 36.25 | 34.5 | 1.5 | None | Radiator | Left | Bottom Left | None |
770033 | 36.25 | 34.5 | 2.25 | None | Radiator | LEFT ANGLED | Right 90 | None |
770034 | 40.5 | 30.3125 | 2.25 | None | Radiator | Top Left | Bottom Right | None |
770035 | 36.25 | 34.5 | 1.5 | None | Radiator | Left | Bottom Right | None |
770036 | 34.125 | 34.5 | 2.25 | None | Radiator | Left | Left | None |
770037 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Left | None |
770038 | 30.5 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770038PTWF | 30.5 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
770039 | 34.125 | 34.5 | 2.25 | None | Radiator | Left | Left | None |
770040 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Left | None |
770041 | 26.6875 | 39.4375 | 2 | None | Radiator | Left | Right | None |

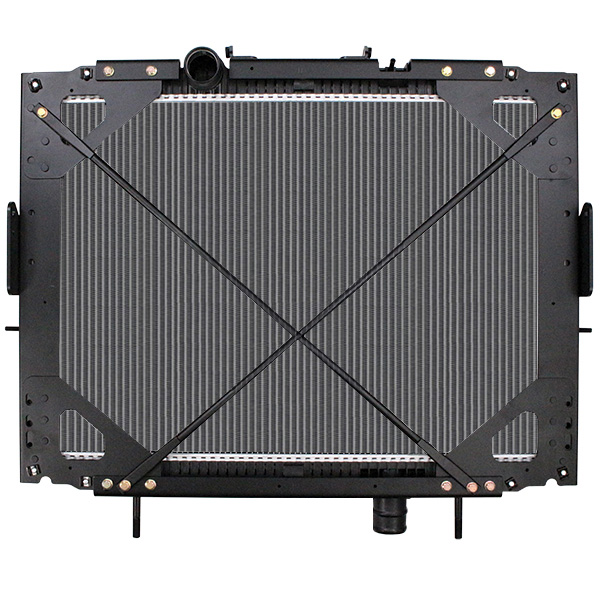

770041PTWF | 26.6875 | 39.4375 | 2 | None | Radiator | Left | Right | None |
770044 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770045 | 36.25 | 34.5 | 1.5 | None | Radiator | Left | Bottom Right | None |
770046 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770047 | 29.25 | 34.5 | 2.25 | None | Radiator | Left | Right | None |
770048 | 36.25 | 34.5 | 2.25 | None | Radiator | Left | Left | None |

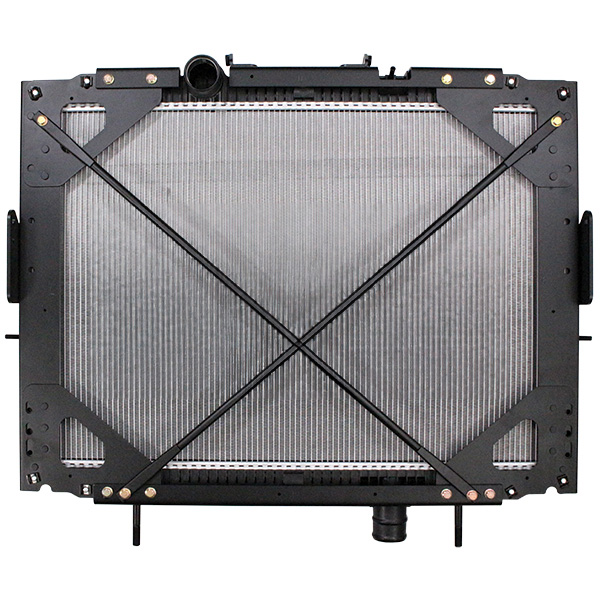

770049 | 25.75 | 39.4375 | 2 | None | Radiator | Left | Right / Bottom | None |
